RK DESIGNMcLaren 600LT
AERO PARTS
機能性とデザイン性に優れたハイダウンフォース仕様エアロパーツ
RK DESIGN provides high downforce aerodynamic parts with superior functionality as well as great look.

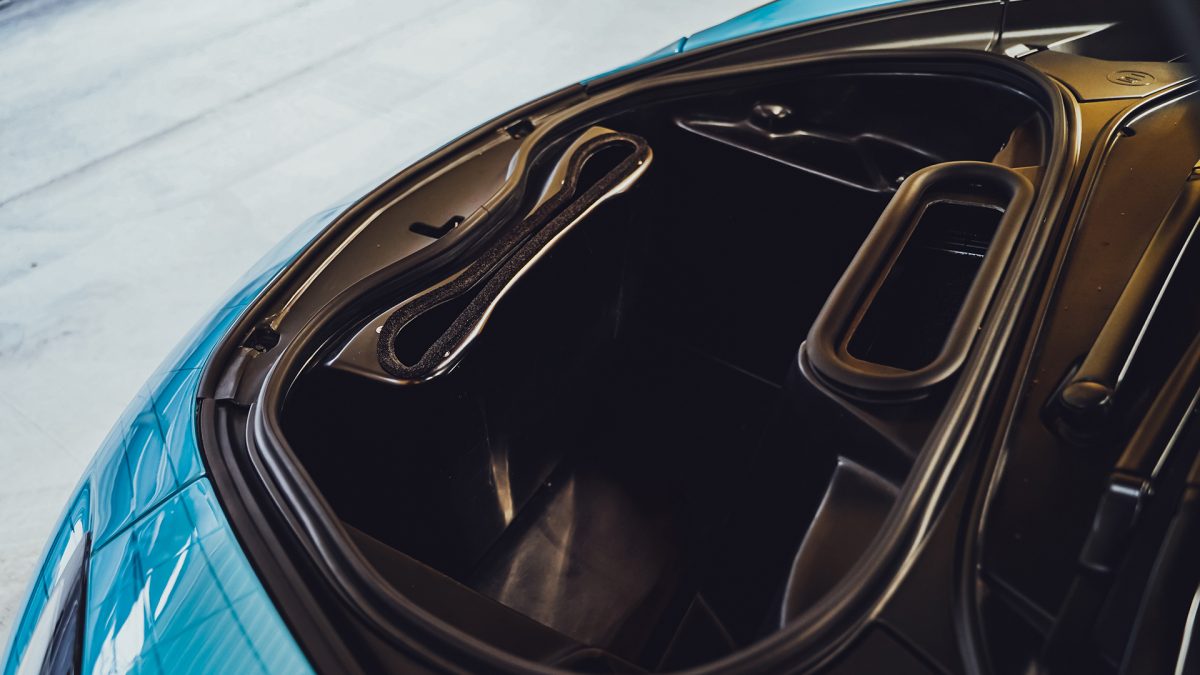

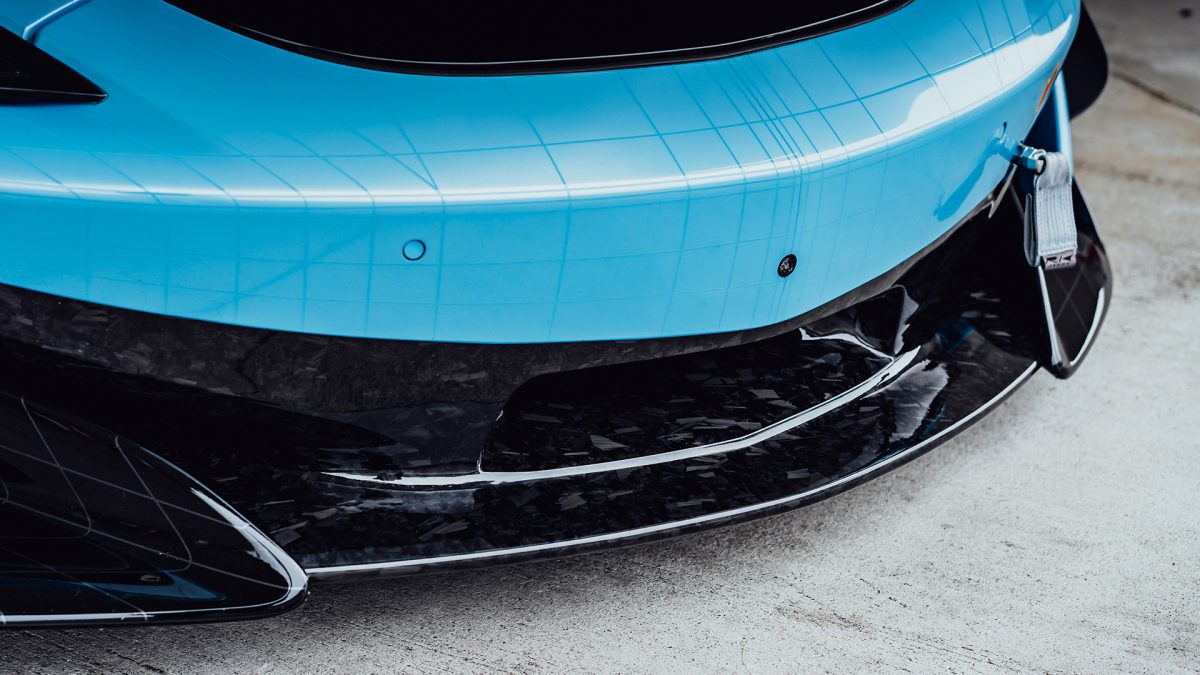

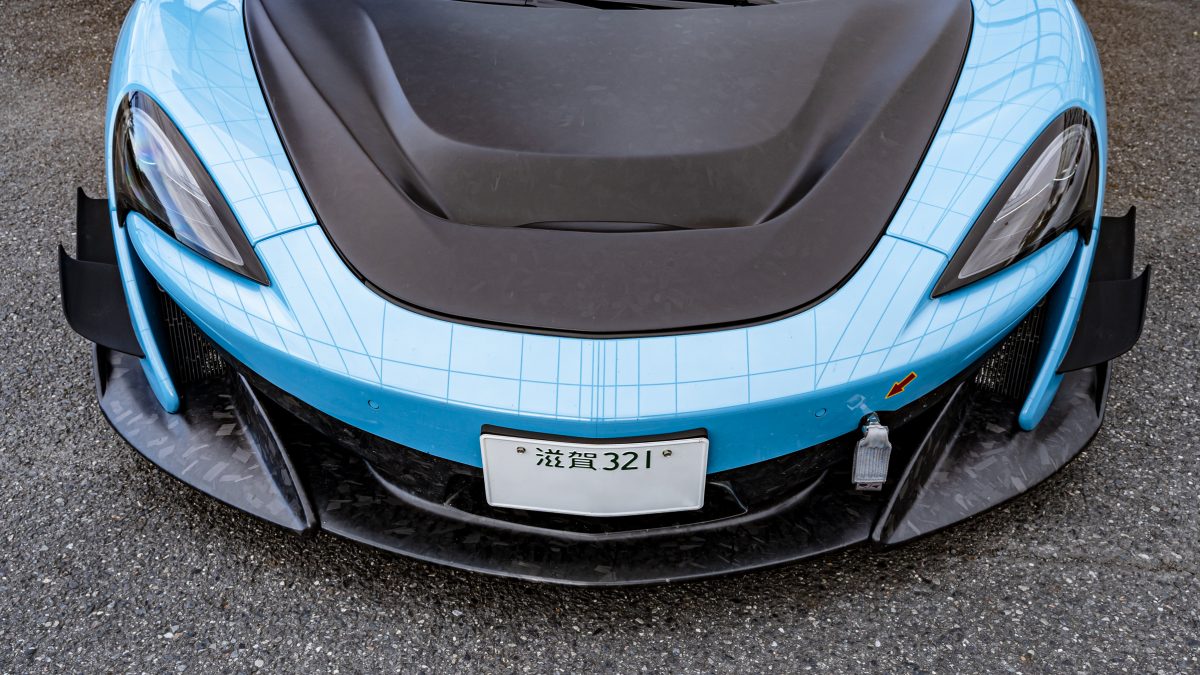

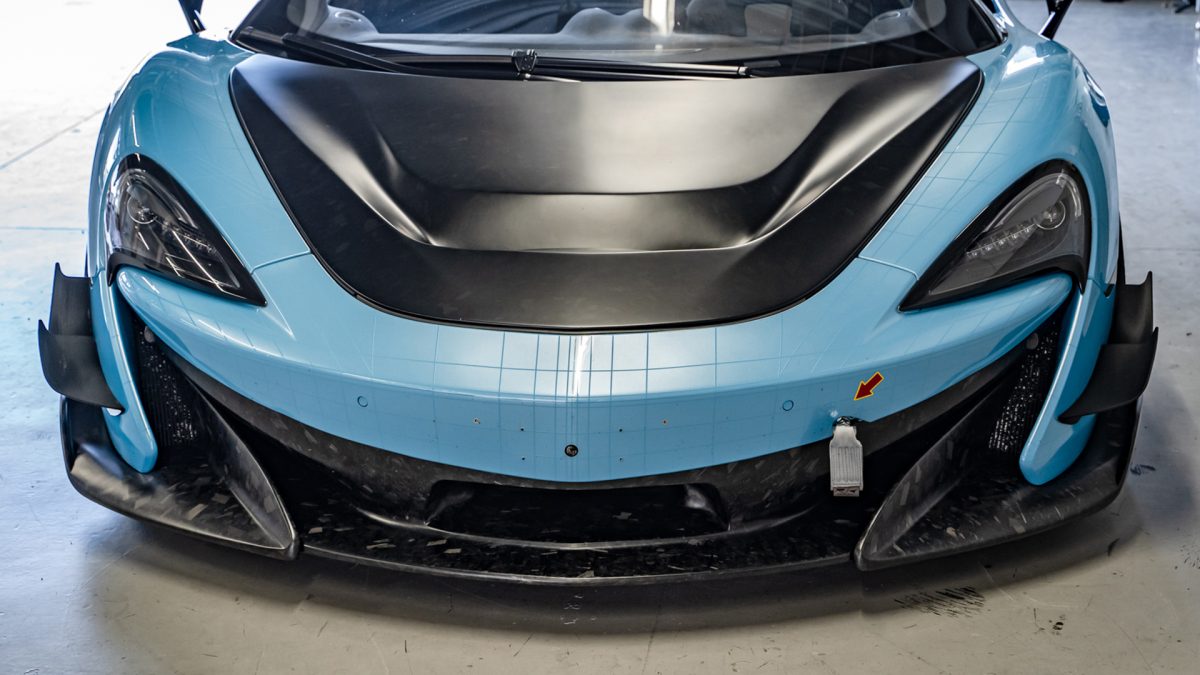

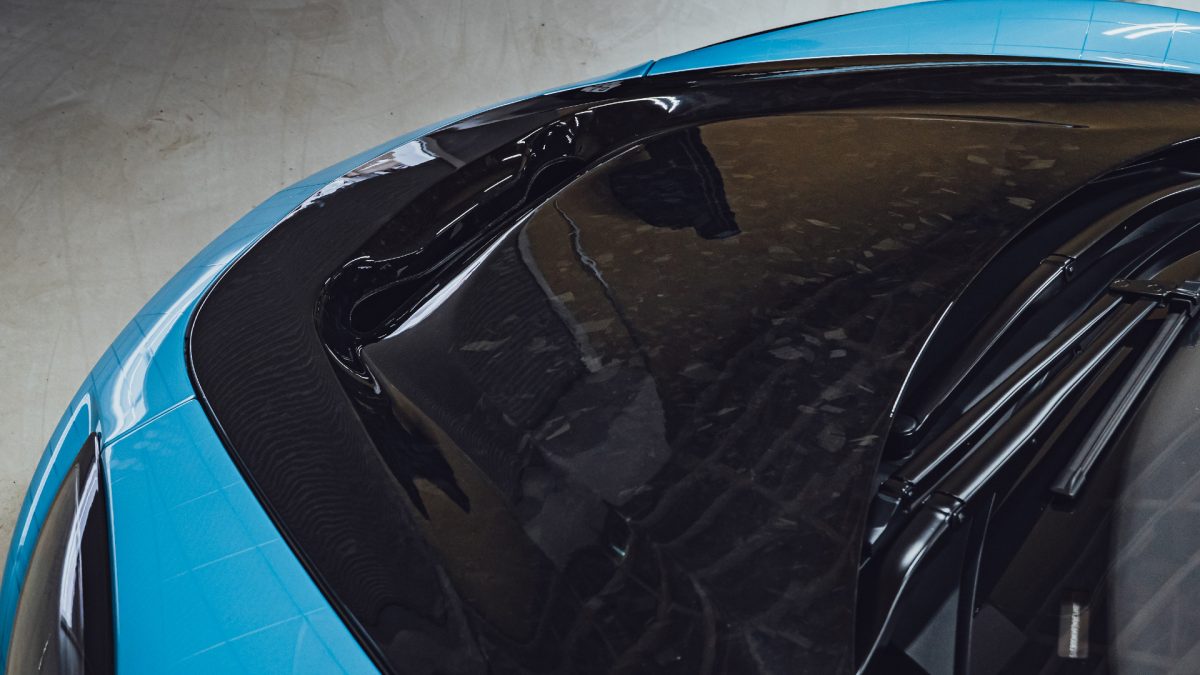

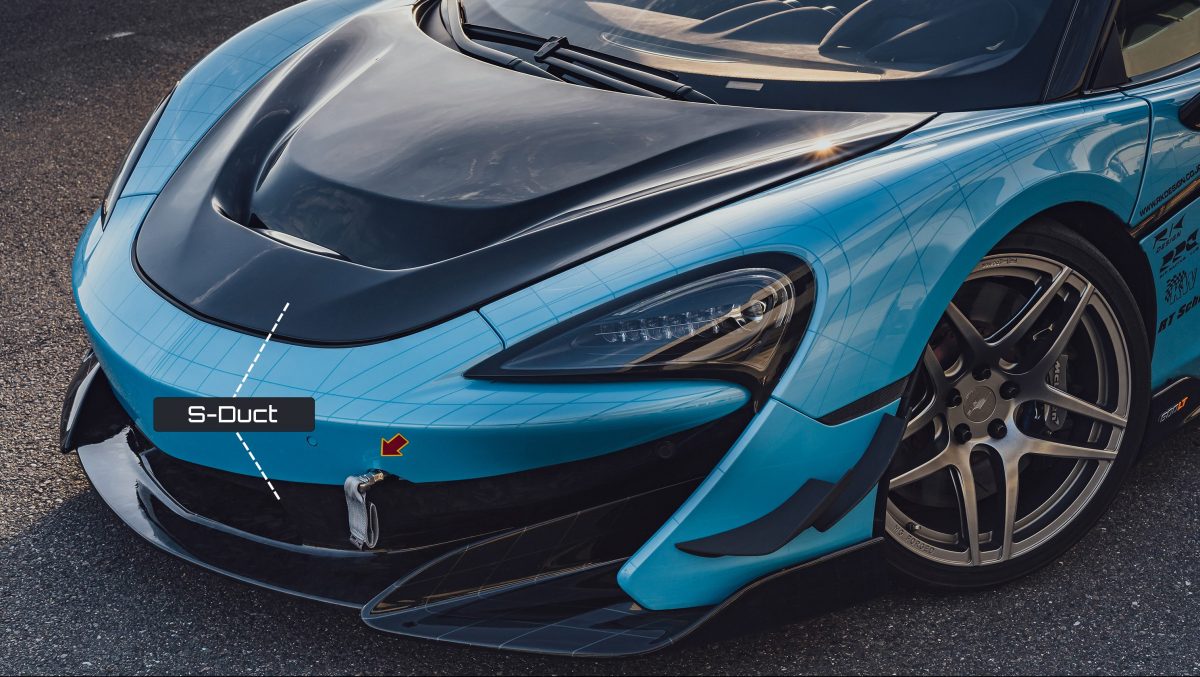

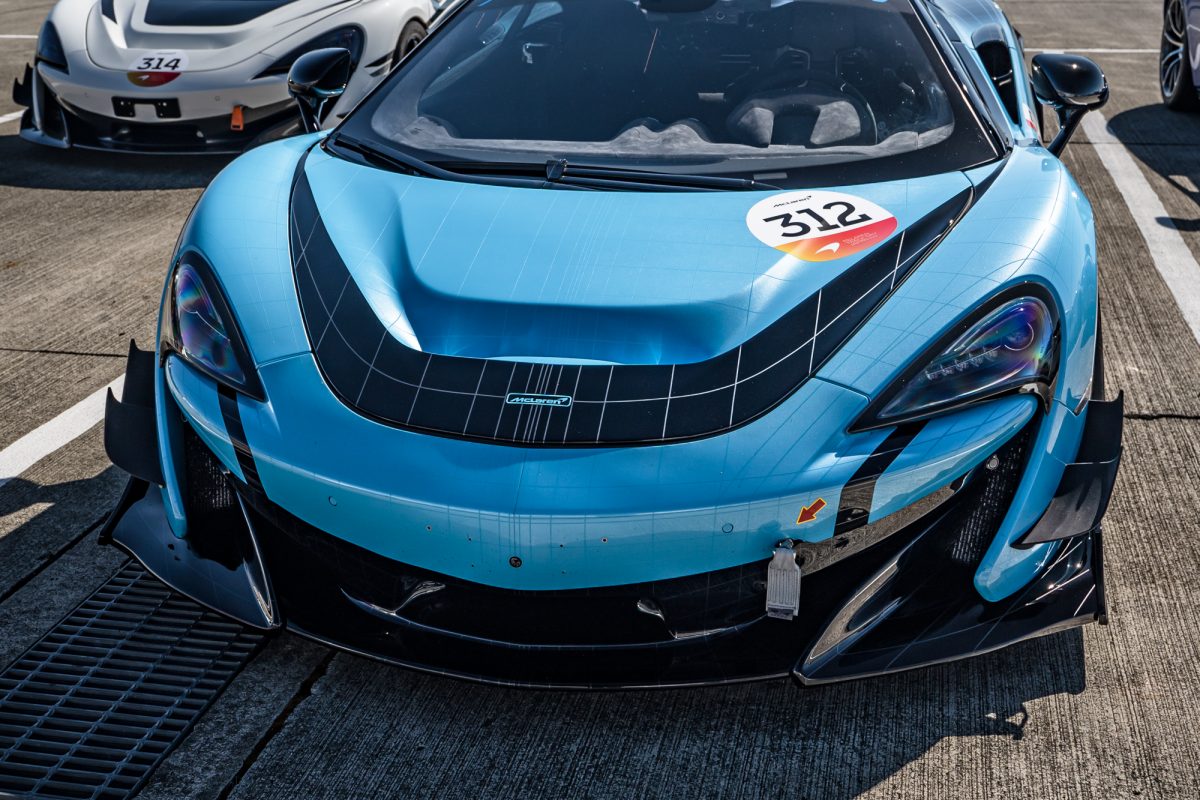

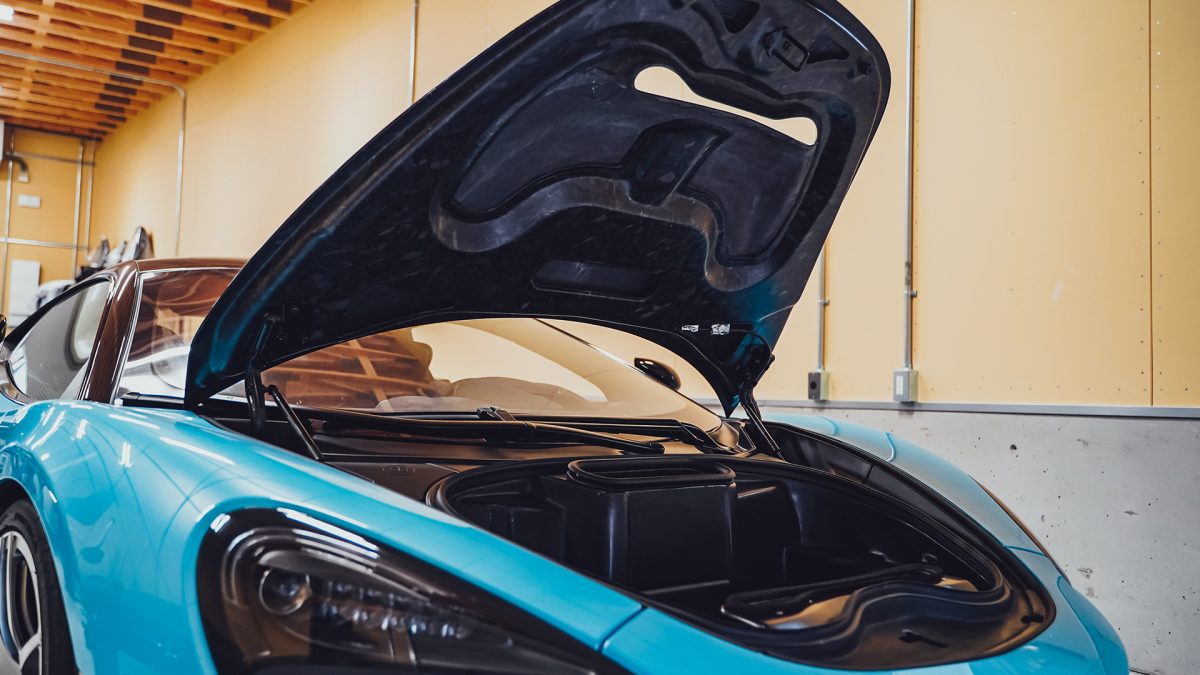

S-Duct Bonnet Kit
Sダクトはエアロボンネット、S字ダクトとS字ダクトカバー、軽量トランクタ

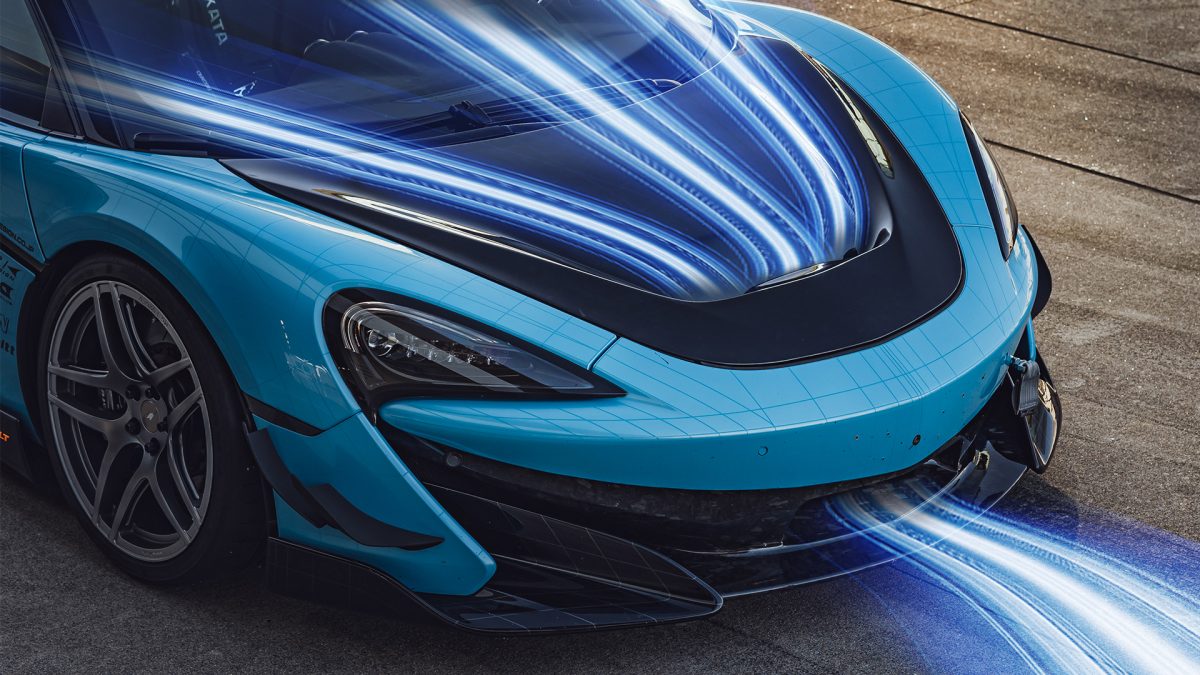

S-Duct kit is consisted by following five parts, aero-bonnet, S-shape duct, S-hape duct cover, light weight trunk tub and front center lip spoiler. It creates downforce by taking air from lower nose section and discharging the air to the upper surface of the bonnet. It takes a good balance of the downforce in front and rear by efficiently leading the air streaming upper surface of the body to the rear wing. By installing S-duct kit, it helps driver to increase bottom speed at high-speed turns with holding neutral steering.
PRICE：￥1,980,000
税込・未塗装・取付別途
エアロボンネット・S字ダクト・S字ダクトカバー・軽量トランクタ
※詳細はお問い合わせください。
※画像はクラッシュカーボン製ですが、実際の商品はドライカーボン製となります。
Including 10% consumption tax in Japan
Unpainted
Paint and installation are no included
aero-bonnet, S-shape duct, S-hape duct cover, light weight trunk tub and front center lip spoiler (made of carbon)
※Feel free to contact us for details.
※The image shows proto-types which made of crushed carbon, but the actual products are made of dry carbon.

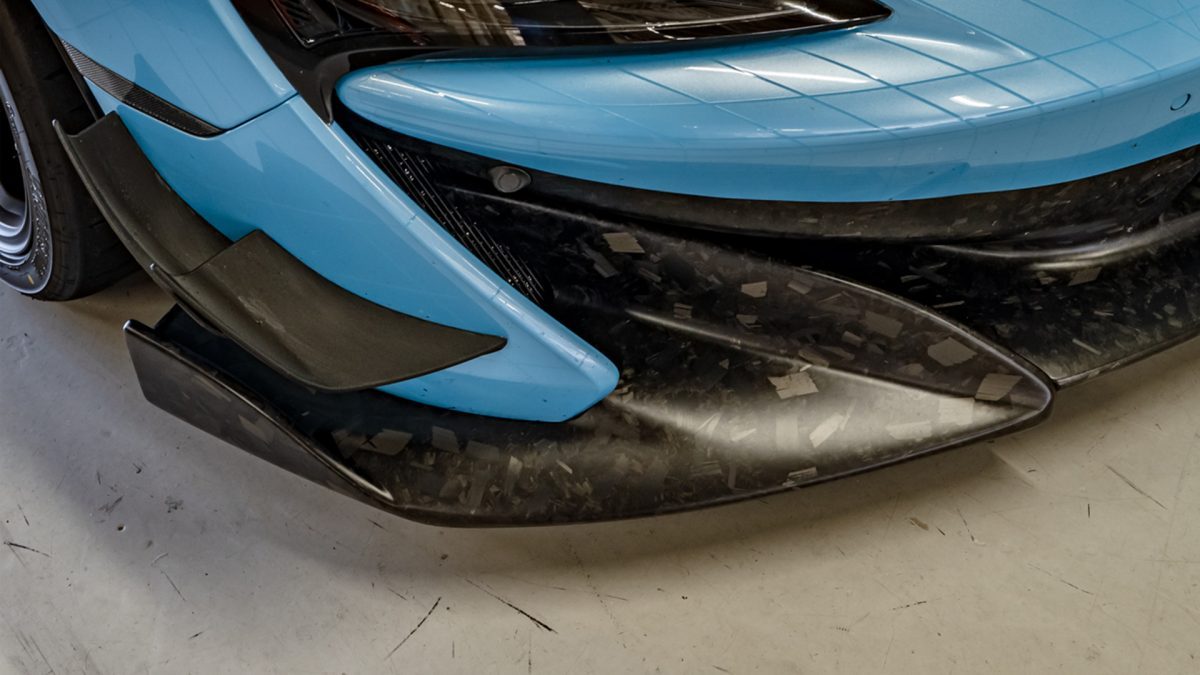

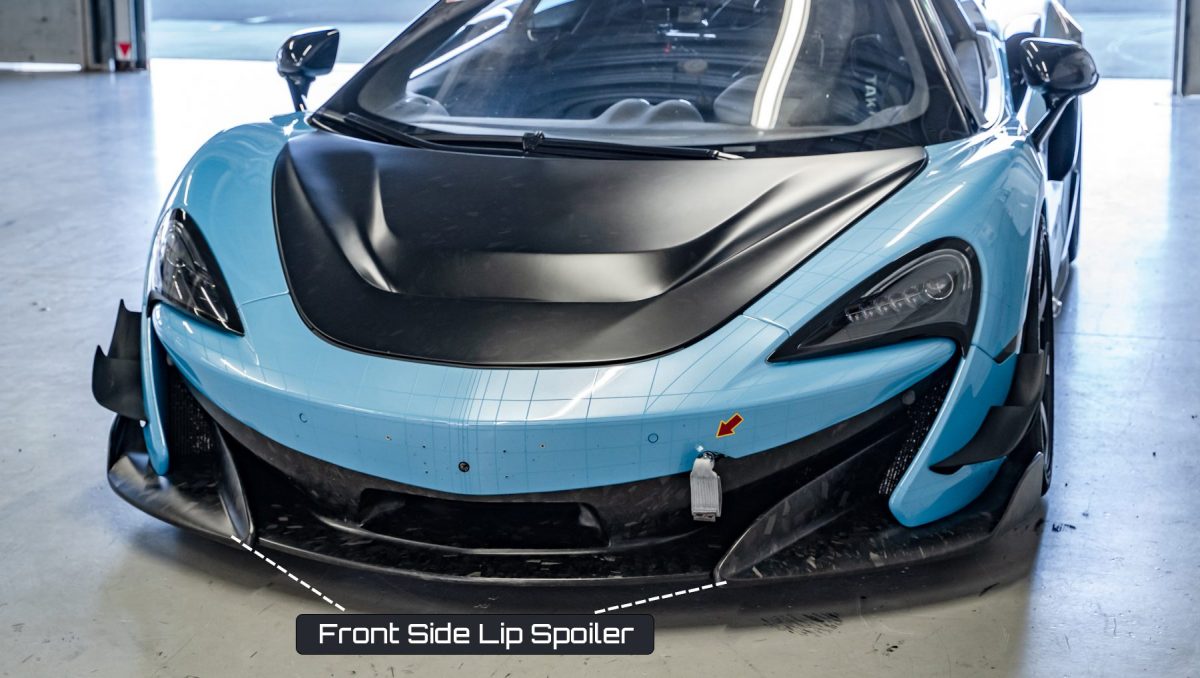

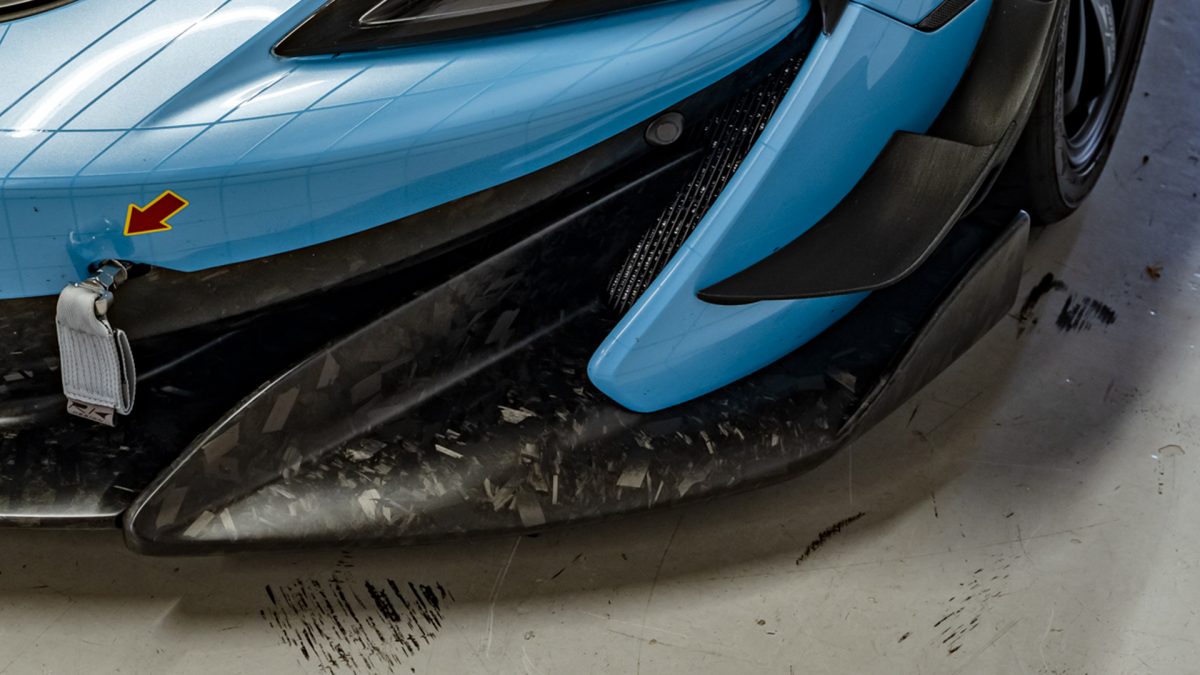

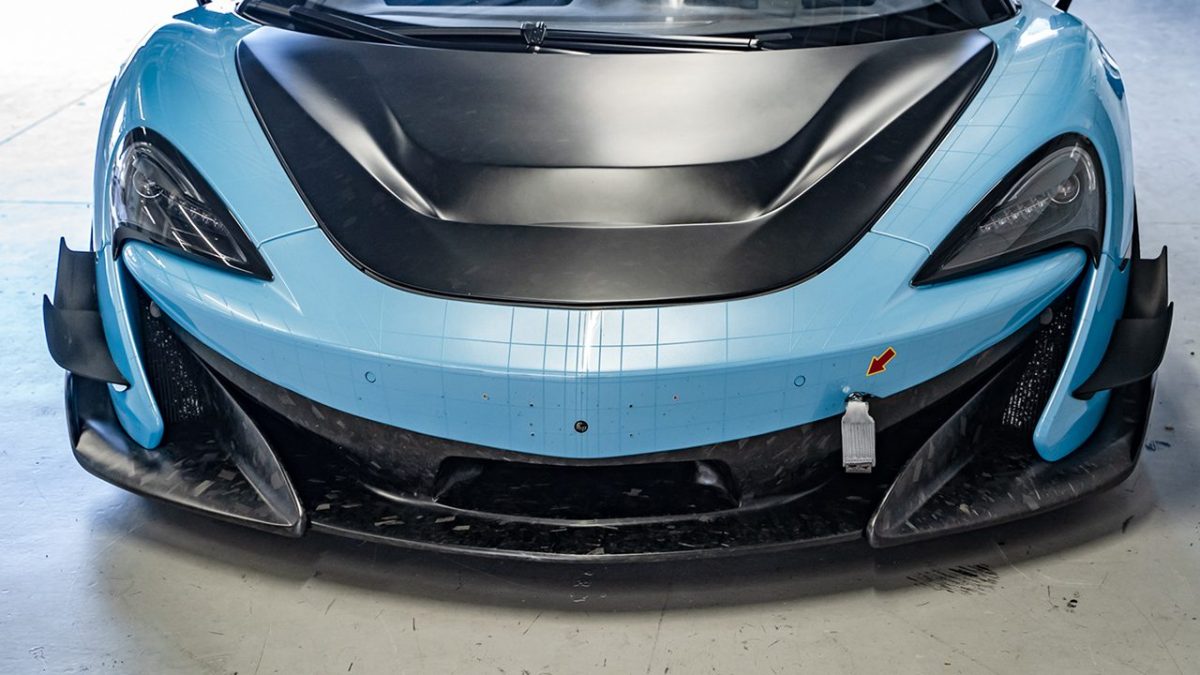

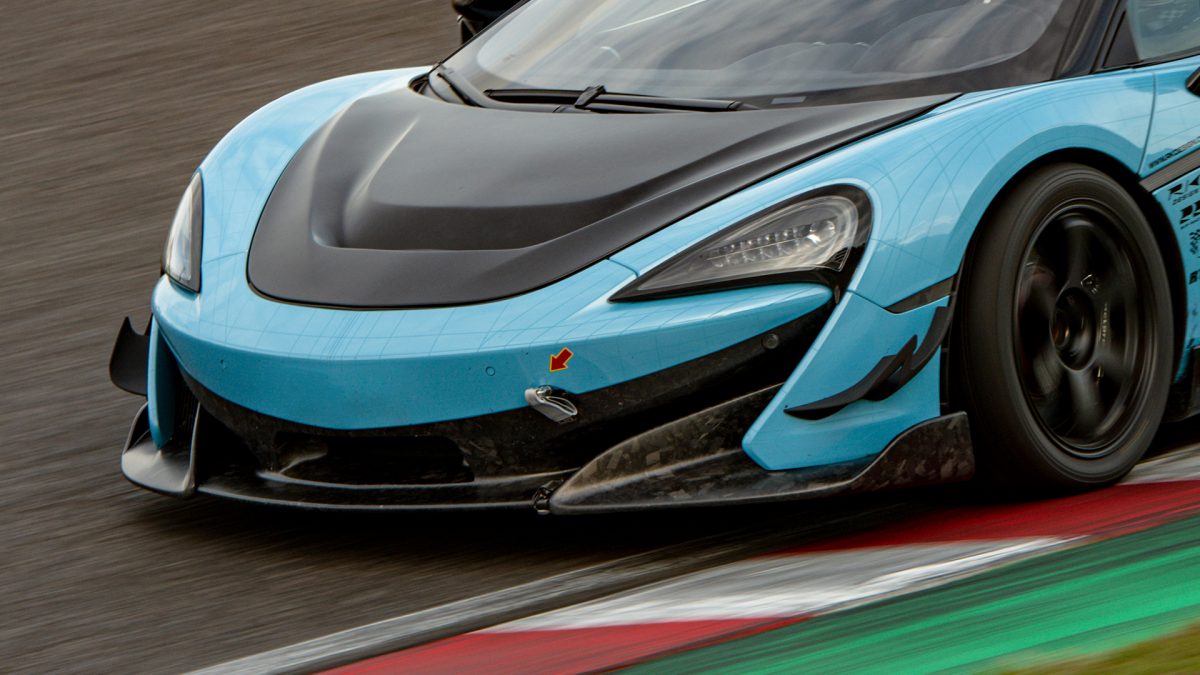

Front Side Lip Spoiler
純正フロントサイドリップスポイラーより左右各50ｍｍワイドに広げました。フロントのグリップ不足を解消すべく、ダウンフォースを増やし、回頭性とコーナリングスピードを向上させます。ルックス的にカナードとのバランスが良くなり、迫力も増しました。
PRICE：￥660,000
税込・未塗装・取付別途
フロントサイドリップスポイラー（カーボン製）
※詳細はお問い合わせください。
※画像はクラッシュカーボン製ですが、実際の商品はドライカーボン製となります。
Including 10% consumption tax in Japan
Unpainted
Paint and installation are no included
Front side lip spoiler (made of carbon)
※Feel free to contact us for details.
※The image shows proto-types which made of crushed carbon, but the actual products are made of dry carbon.

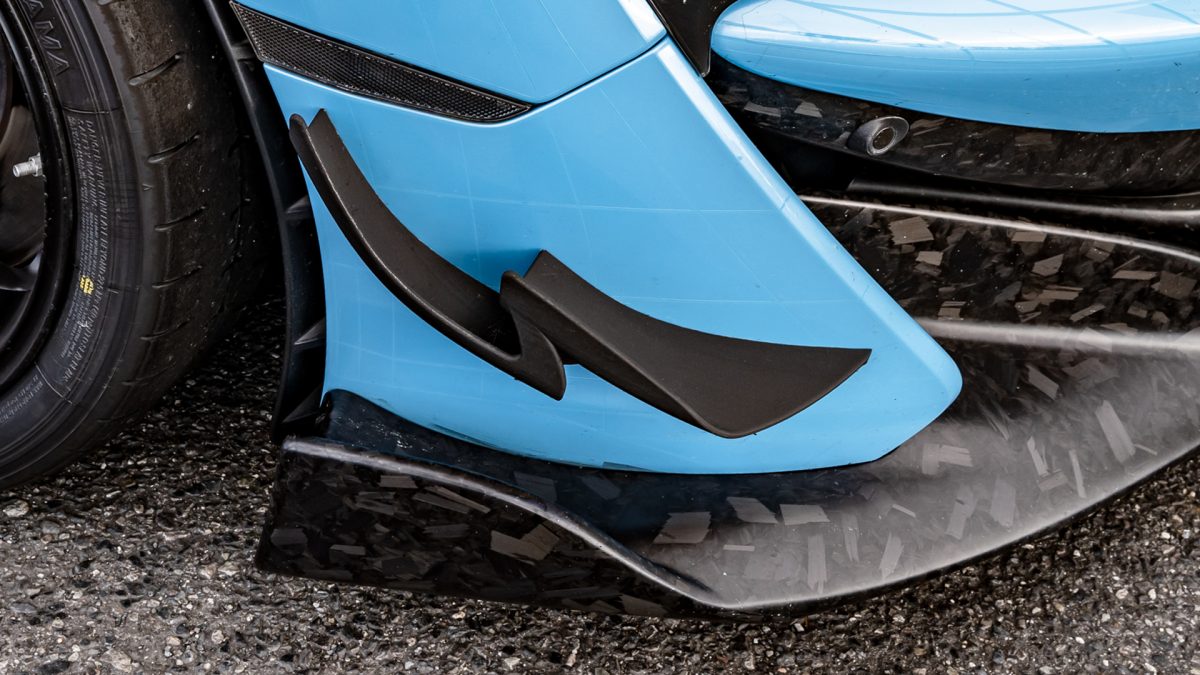

Front Bumper Canard
フロントフェンダー上部の空気の流速を上げ、タイヤハウス内の空
The front canard is required to increase the air flow velocity above the front fender and draw air inside the tire house to provide downforce.
The complex shape of the two-flap canard to create the optimum airflow was achieved by using a 3D printer.
PRICE：￥200,000
税込・未塗装・取付別途
フロントカナード・アンダーカナード（３Dプリンター製）
※詳細はお問い合わせください。
Including 10% consumption tax in Japan
Unpainted
Paint and installation are no included
Front Canard ＆ under canard set (produced by 3D printer)
※Feel free to contact us for details.

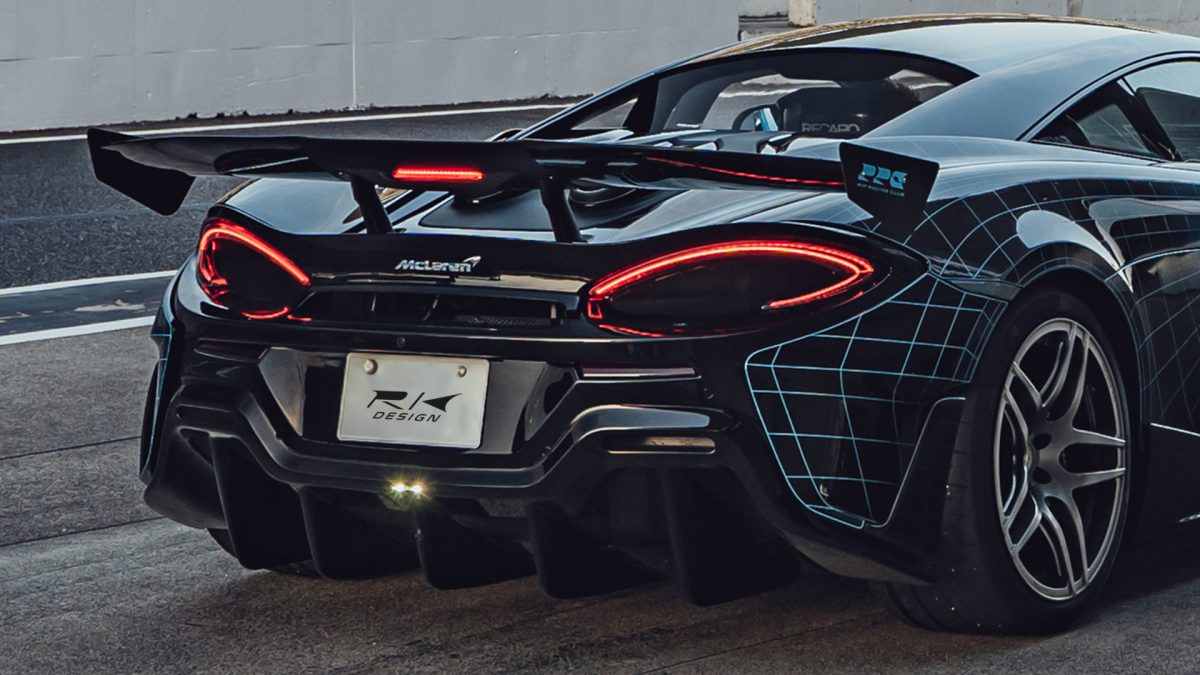

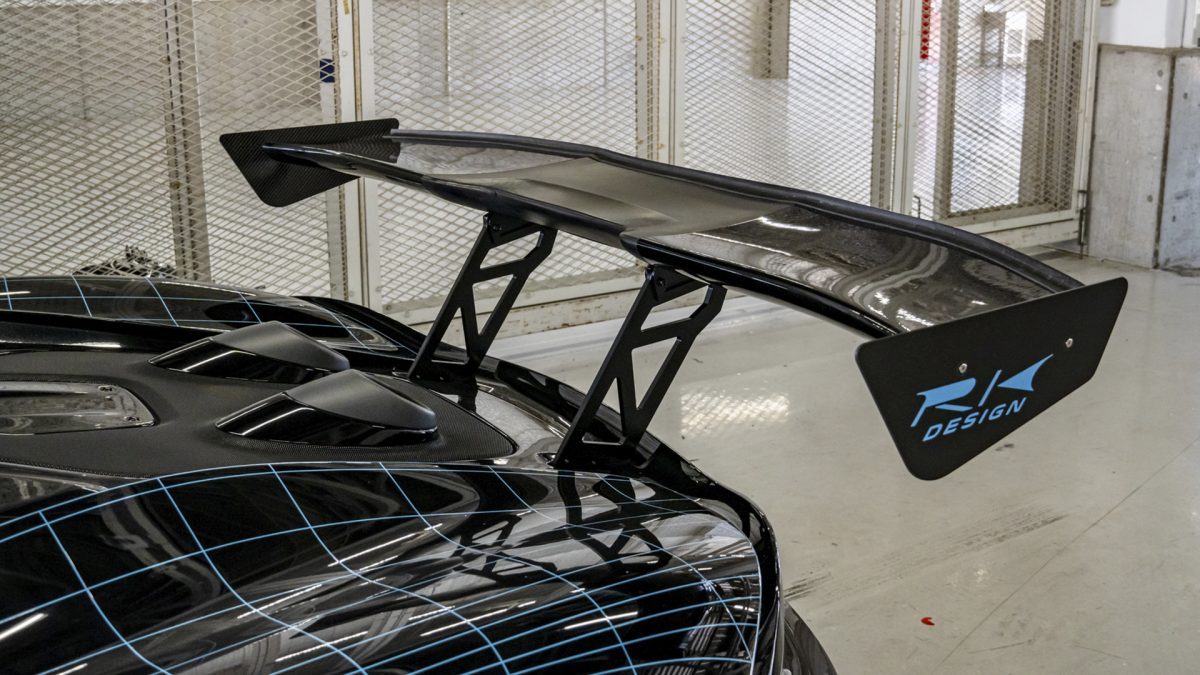

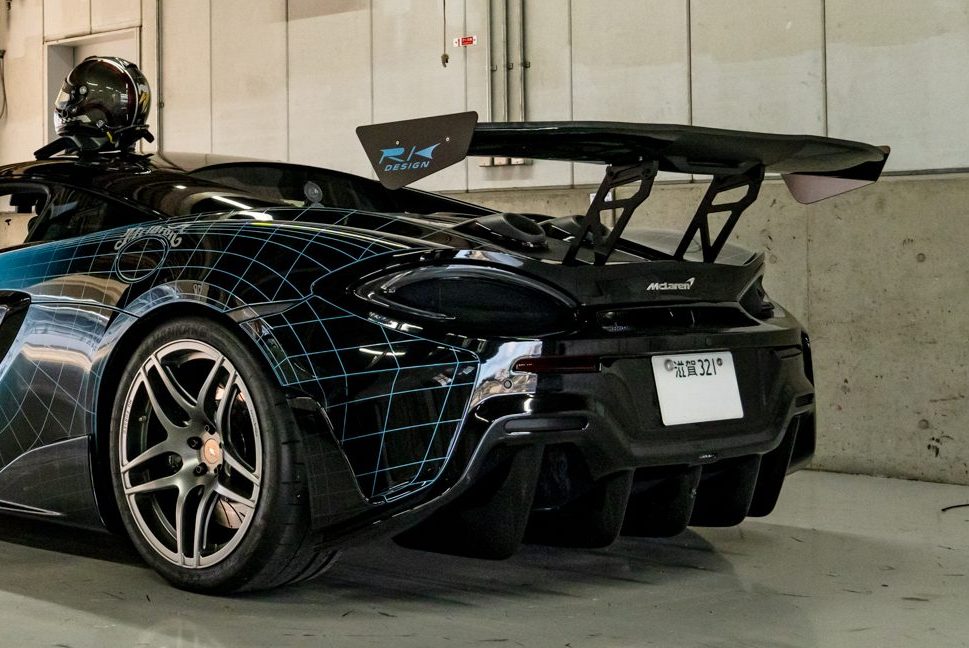

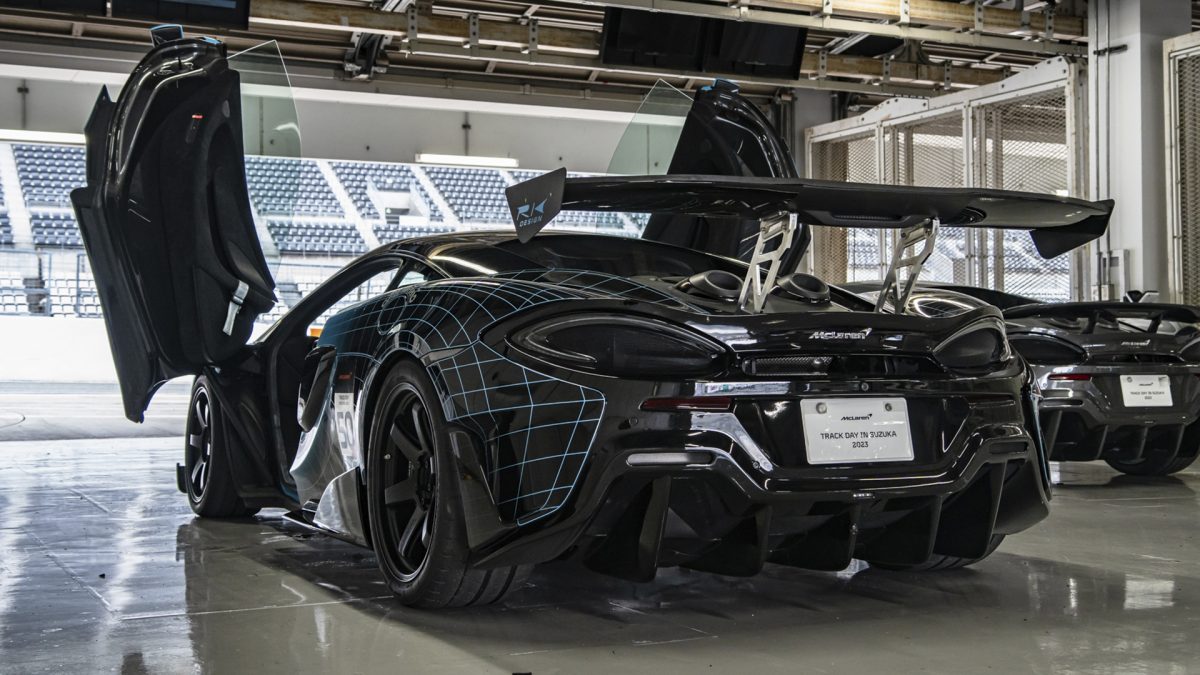

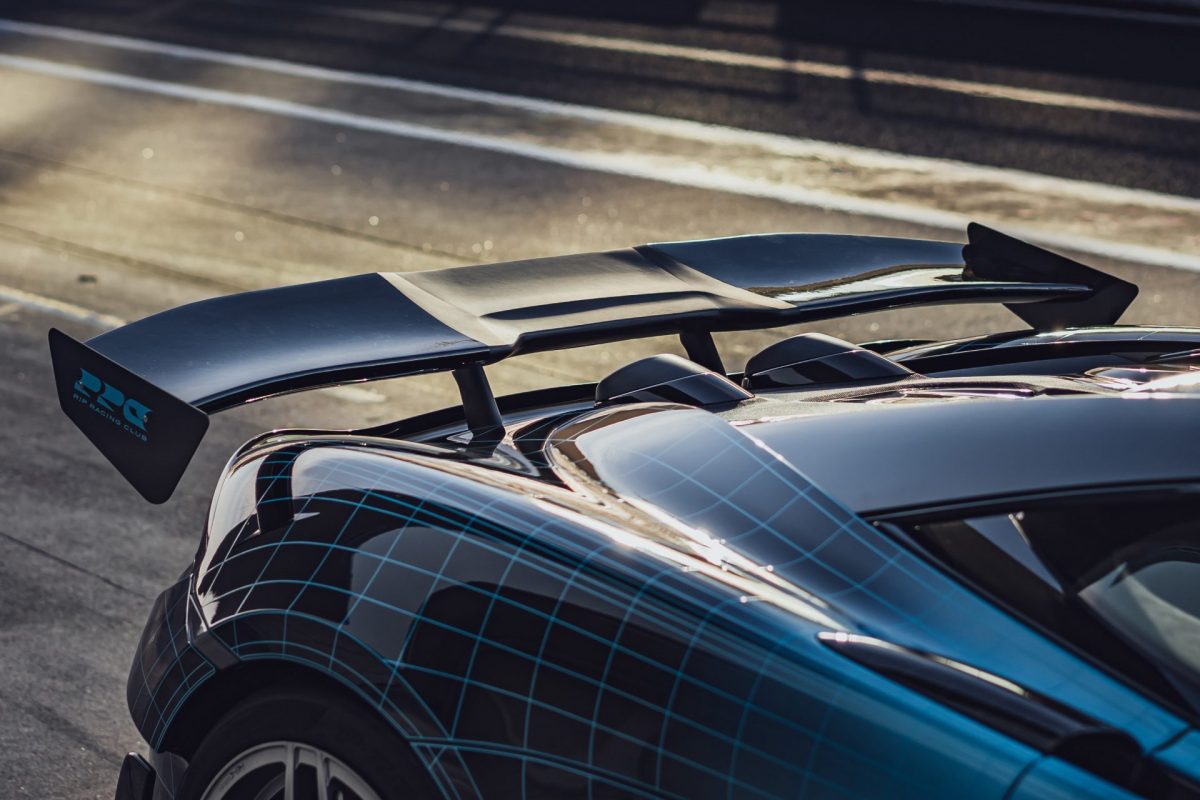

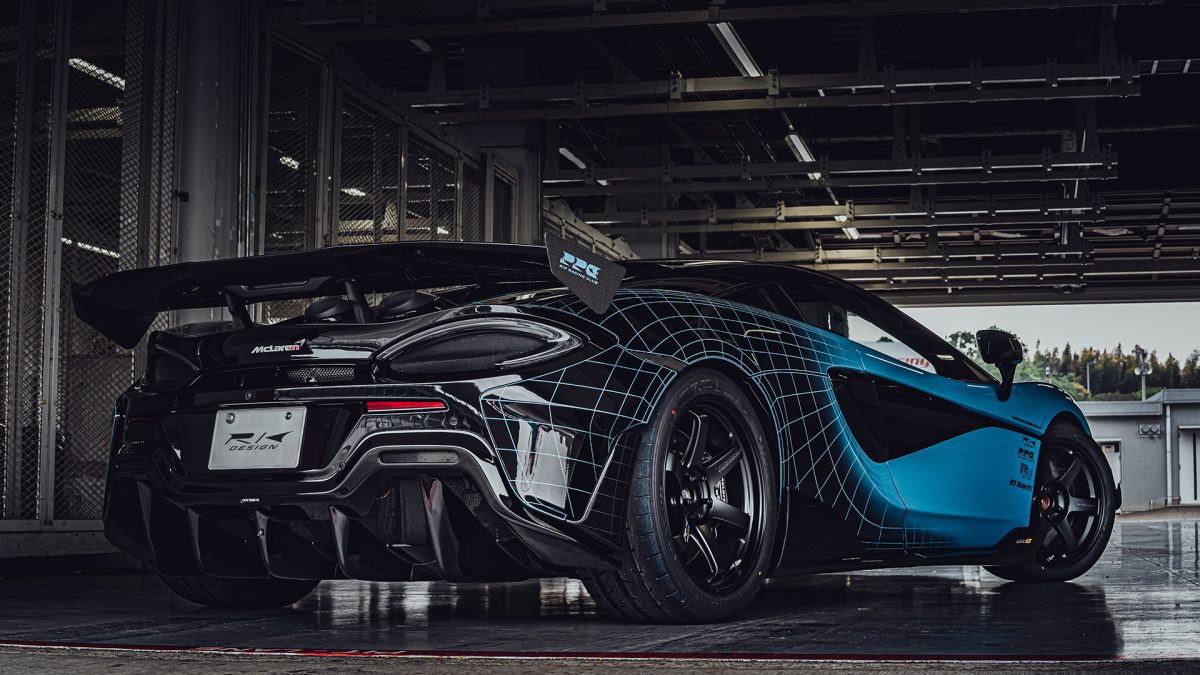

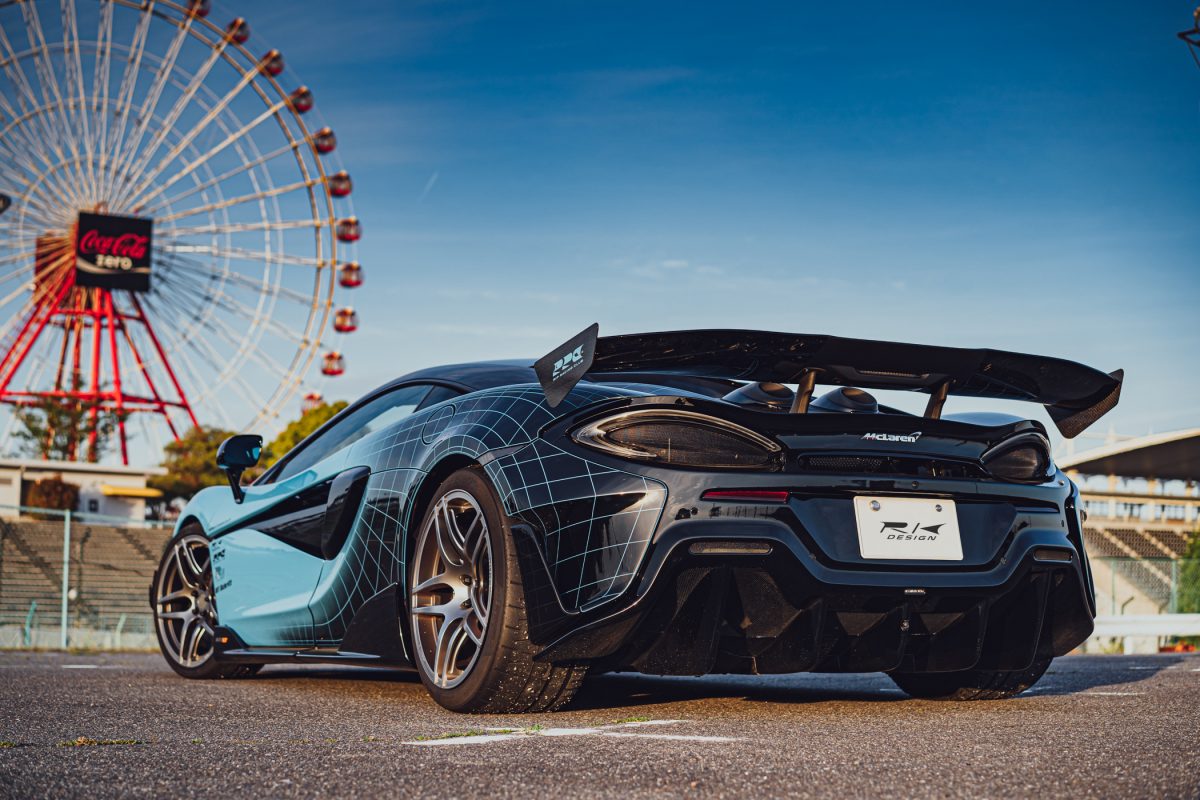

Rear Wing
コーナリング時にコクピット後方の乱流を積極的に整流するため中
マフラーの出口後方のウイング中心部には耐熱塗料を施工。
RK DESIGN large rear wing that center part curved is designed to arrangethe turbulence occurring back of the cockpit at turns.
Heat-resistant paint is applied in the center part of the wing which locates behind the exhaust slots.
PRICE：￥880,000
税込・未塗装・取付別途
リアウイング（カーボン製）
※詳細はお問い合わせください。
※画像はクラッシュカーボン製ですが、実際の商品はドライカーボン製となります。
Including 10% consumption tax in Japan
Unpainted
Paint and installation are no included
Rear wing (made of carbon)
※Feel free to contact us for details.
※The image shows proto-types which made of crushed carbon, but the actual products are made of dry carbon.
※エアロパーツは、日本国内のみ車両の引き取り・取付対応可能
Transportation of the vehicles and installation service of the aerodynamic parts can be provided in Japan.
Wheels
RK Design MG FORGED WHEEL MS90
デザイン、重量、強度、キャリパークリアランスなど細部までRI
MS90 is the flag-ship wheel of RK DESIGN that carefully designed to harmonize the style, weight, strength and caliper clearance. The true deep concave design that surpassed others was realized by use of forged magnesium alloy. The deeply sunken spokes emphasize the width of the wheels and it tells the irresistible power that McLaren creates.
サイズ
19インチ：8.0J～13.0J
20インチ：8.5J～13.0J
PCD オフセット、ハブ径、ラグホール径などは車種別にセミカスタムオ
標準カラー（7色）
ホワイト（WHT）・シルバー（SIL）・ブラック（BLK）
艶消しブロンズ（MBR）・艶消しシルバー（MSL）・艶消しカーボン（MGM）・艶消しブラック（MBL）
カスタムカラー：別途ご相談
※詳細はお問い合わせください。
19-inch: 8.0J – 13.0J
20-inch: 8.5J – 13.0J
Standard colors (7 colors)
White（WHT）Silver（SIL）Black（BLK）
Matte Bronze（MBR）Matte Silver（MSL）Matte Carbon（MGM）Matte Black（MBL）
Custom color: negotiable
※Feel free to contact us for details.
Aerodynamics Image
エアロダイナミクス
車両速度に応じ空気の抵抗力が車体に働くことで、車体は地面に押
RK DESIGNのエアロパーツは直線、高速コーナー、中低速コーナ
The resistance of air acts on the car body according to the vehicle speed, so the car body is pressed against the ground or tries to float from the ground. Increase / decrease in air resistance has a great effect on vehicle driving such as speed, handling, and fuel efficiency.
In places like Fourmla-1 where competing in 100/1 seconds and 1000/1 seconds, the cars are designed emphasizing lift force and downforce that work in the vertical direction. In addition to reducing the air resistance that affects speed and fuel consumption, it is also important to use the air resistance to push the tires against the ground to obtain a higher grip in order to effectively transmit the limited power to the ground.

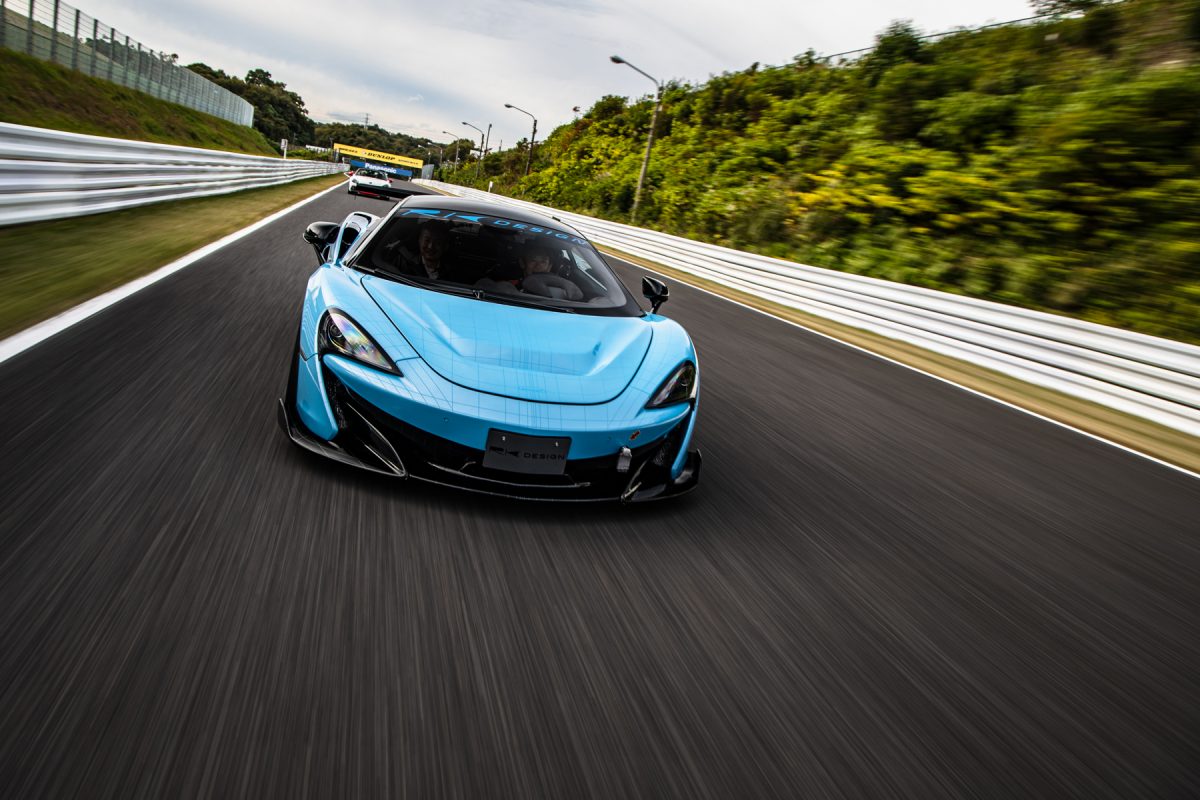

RK DESIGN aerodynamic parts are products that aim for the optimum aerodynamic balance when driving on the Suzuka Circuit loved by many drivers from amateurs to professionals and where straight lines, high-speed corners, and mid and low-speed corners are located with well-balanced manner.

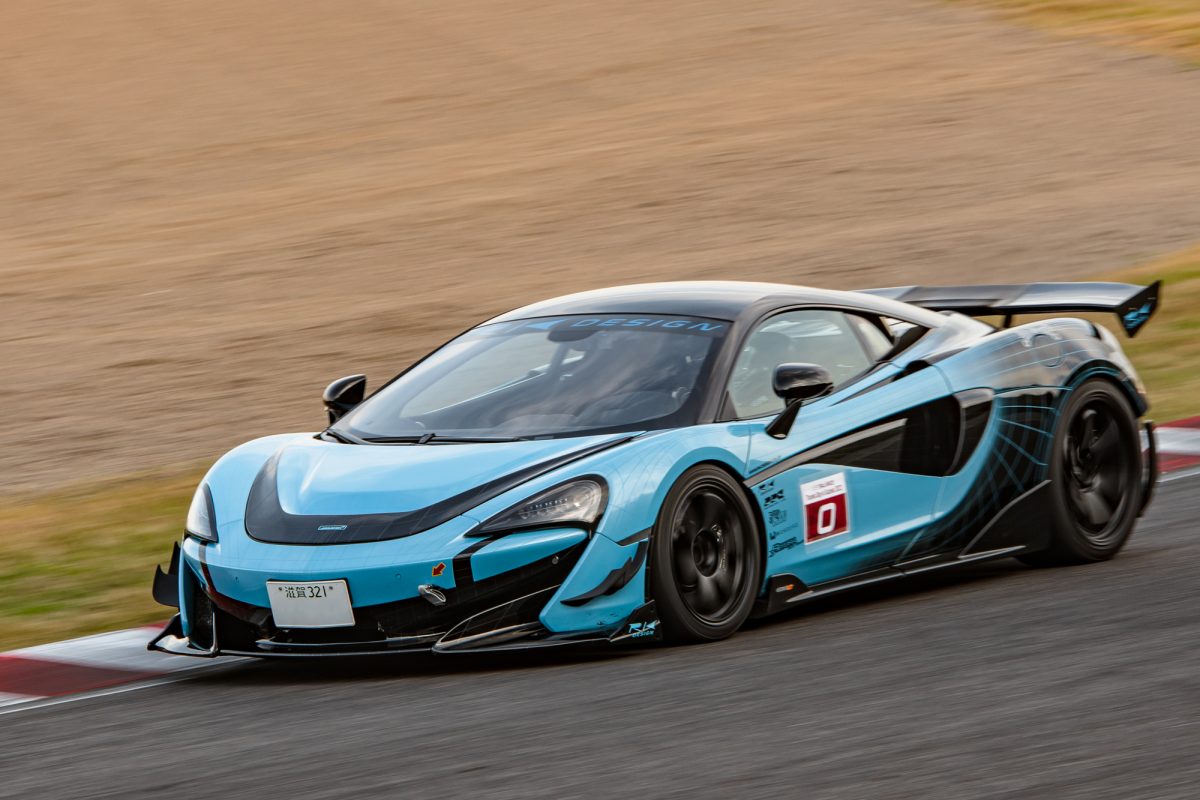

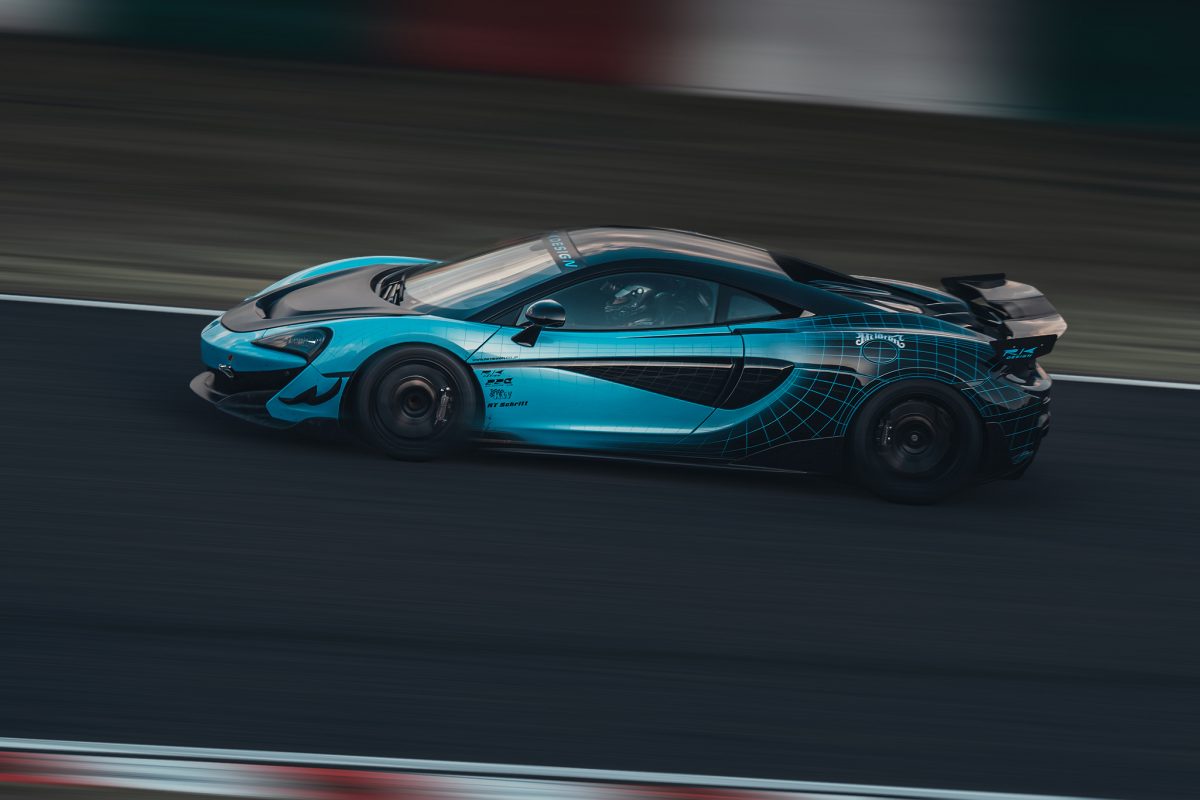

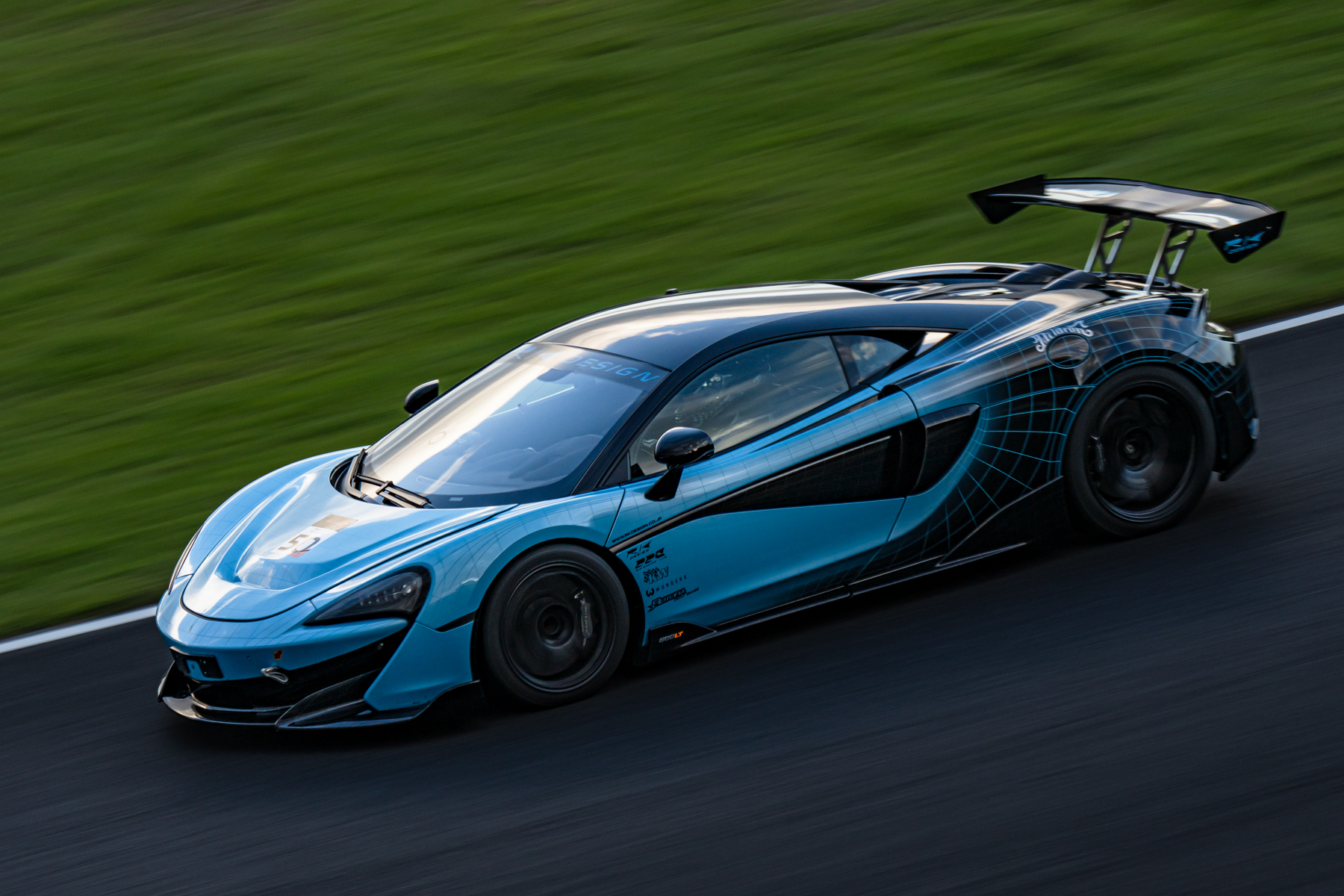

CUSTOM
| Democar Spec | SUZUKA CIRCUIT BEST LAP 2,15.163 |
| Engine | Stock |
| Max power | 600 PS |
| Exhausts | Stock |
| Suspension | KW Height Adjustable Spring Kit |
| Brake caliper Brake rotor Brake pad |
Stock ROTORA 2-piece iron rotor ENDLESS CC-Rg |
| Canards | RK DESIGN 3D PRINTER |
| S-Duct kit | RK DESIGN |
| Rear wing | RK DESIGN |
| Wheel | RK DESIGN MS90 F:19×8.5 +30 / R:20×11.0 +37 PCD: 5-112 Hub: 66.5 Bolt Size: M14xP1.5 |
| Tire | BRIDGESTONE POTENZA RE-71RS F:235/35R19 R:285/35/20 |

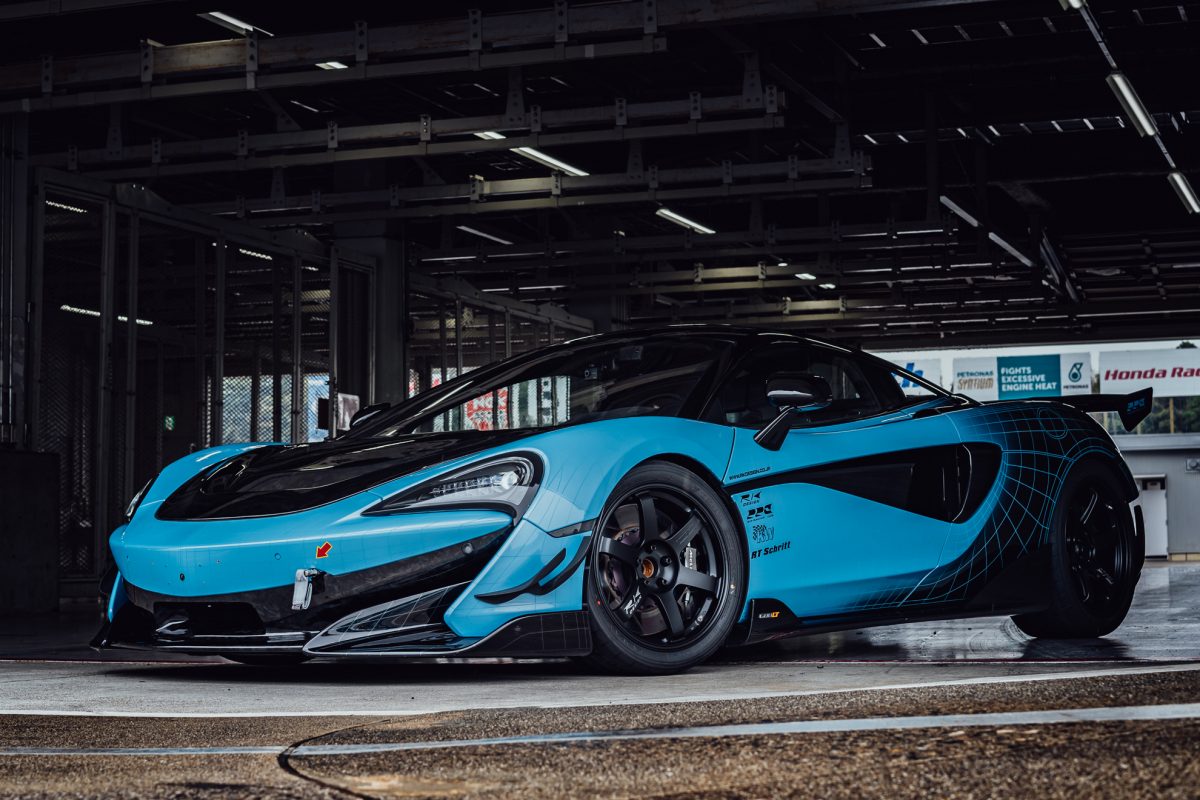

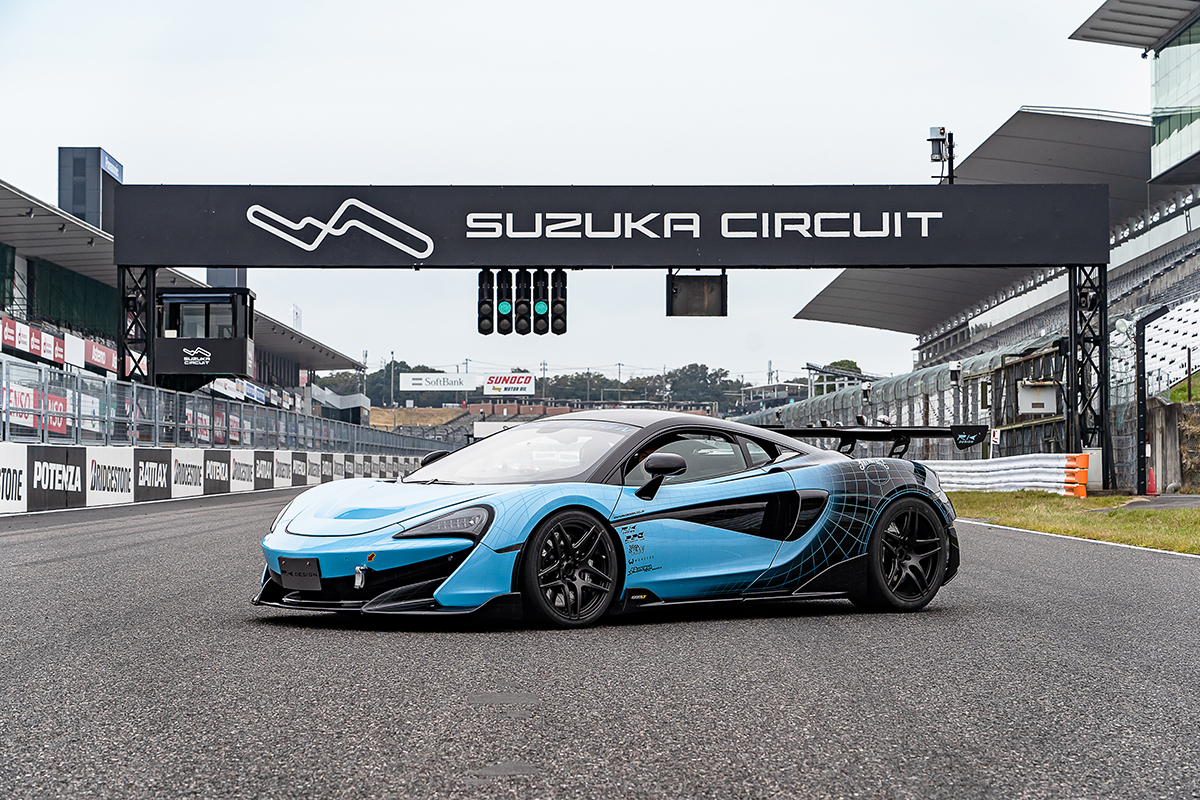

Democar SUZUKA CIRCUIT BEST LAP 2,15.163
